The blow molding process might sound like factory-floor jargon, but in the beauty aisle, it’s the quiet puppet master. That sleek serum bottle or sturdy shampoo container? It didn’t just pop into existence—it was puffed, stretched, and pressure-shaped like molten glass in a high-stakes kitchen. When you’re ordering millions of units, one weak seam or cloudy finish can snowball into returns, delays, and brand side-eyes. That’s not pocket change—that’s reputation on the line.
“Precision isn’t optional at scale,” says a senior process engineer at Topfeelpack in a 2025 production briefing. “Wall thickness variance under 0.1mm can make or break freight performance.” In other words, close enough doesn’t cut it.
So before signing that PO, it pays to know what’s happening behind the curtain—because your packaging partner shouldn’t just make bottles. They should make promises that hold.

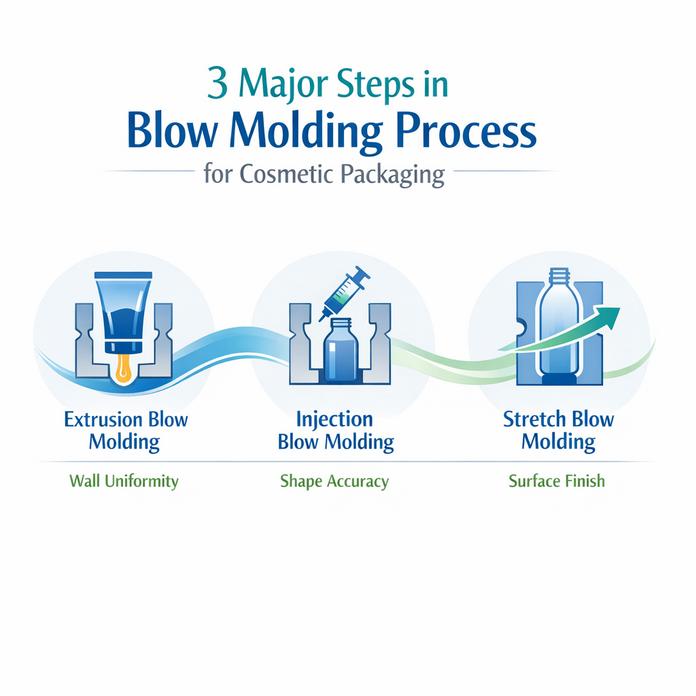

3 Major Steps In Blow Molding Process
The blow molding process sounds technical, yet it’s part of daily life—every shampoo bottle on your shelf proves it. In plastics manufacturing, blow, molding, and process stages connect into one smooth production flow. From parison shaping to stretch alignment, this molding process keeps cosmetic packaging light, clear, and cost-friendly.
Step 1: Extrusion Blow Molding of Cosmetic Bottles
Within the blow molding process, extrusion blow molding works like this:
- Material Flow System
- Melting of resin before forming the parison
- Continuous extrusion into a hollow tube
- Shaping System
- Closing of the mold around the parison
- Air inflation to match bottle geometry
- Finishing System
- Controlled cooling
- Edge trimming
Process Control Snapshot
| Parameter | Typical Range | Impact on Cosmetic Bottles | Quality Risk |
|---|---|---|---|
| Melt Temp (°C) | 160–220 | Wall uniformity | Sink marks |
| Air Pressure (MPa) | 0.6–1.2 | Shape accuracy | Burst risk |
| Cooling Time (s) | 8–20 | Surface finish | Warping |
This extrusion-based blow molding process suits high-volume cosmetic bottles, supports recycled layers, and keeps tooling flexible.
Step 2: Injection Blow Molding for Jars and Containers
Inside this blow molding process variation:
- Preform Creation
- Resin injected into a cavity
- Formation of precise preform
- Blow Forming
- Transfer to blow station
- Air expansion inside mold
- Release Phase
- Automated ejection
The injection and blow molding cycle reduces flash and keeps cream jars and containers smooth. For creams and serums, dimensional control matters. A stable molding process means fewer rejects and faster packing.
Step 3: Stretch Blow Molding to Enhance Clarity
This plastic blowing process adds orientation science:
- Thermal Preparation
- Controlled reheating of preform
- Mechanical Alignment
- Axial stretch
- Radial air expansion
- Material Effect
- Biaxial orientation
- Improves clarity
- Boosts impact strength
- Enhances barrier performance
- Biaxial orientation
Stretch blow molding refines the overall blow molding process by thinning walls without losing strength. Lightweight yet tough—that’s the goal.
For brands wanting reliable molding results, Topfeelpack integrates extrusion, injection, and stretch systems into one efficient blow molding process workflow. In fast-moving beauty markets, that balance of clarity, cost, and consistency keeps packaging ahead.
Which Materials Suit Blow Molding?
Choosing the right resin can make or break the blow molding process. From chemical safety to shelf appeal, material choice shapes how the molding process performs, how bottles survive shipping, and how brands stand out. Let’s break it down in plain terms.
Polymers with Superior Chemical Resistance
In the blow molding process, chemical stability keeps cosmetic formulas safe and packaging intact.
- Core performance requirements
- Resistance profile
- chemical inertness prevents reactions with active ingredients
- Strong solvent resistance for alcohol-based toners
- Reliable acid resistance and alkali resistance for exfoliating or cleansing formulas
- Long-term corrosion resistance during storage
- Structural integrity
- Maintains wall strength during the molding process
- Reduces stress cracking after blow forming
- Resistance profile
- Recommended polymers
- high-density polyethylene
- Excellent barrier against aggressive lotions
- Stable during extrusion blow molding
- polypropylene
- Handles higher temperatures
- Performs well in continuous blow molding lines
- high-density polyethylene
At Topfeelpack, material selection during the blow molding process always starts with formula compatibility, not guesswork.
Materials Offering High Impact Strength
No one likes cracked bottles. In any blow molding process, impact performance matters just as much as looks.
Key traits include:
- impact resistance
- toughness
- durability
- shatter resistance
Resins often used in blow molding materials include:
- PET for clarity and drop performance
- polycarbonate for premium strength
- acrylonitrile butadiene styrene when rigidity is needed
- nylon for added structural reliability
During the molding process, proper cooling and wall distribution boost container life. A smart blow forming setup reduces weak points and keeps products safe from factory floor to bathroom shelf.
Resins for Optimal Barrier Properties
Some creams are sensitive. Air and moisture are not their friends. The blow molding process can integrate advanced barrier layers when protection is critical.
- Barrier objectives
- Limit gas barrier transmission
- Strengthen moisture barrier performance
- Improve oxygen barrier efficiency
- Increase permeation resistance overall
- Material technologies
- Layer integration
- ethylene vinyl alcohol for oxygen control
- polyvinylidene chloride for high-performance barriers
- Structural systems
- Multi-layer laminates
- Outer layer: mechanical strength
- Core layer: barrier shield
- Inner layer: product compatibility
- Layer integration
Co-extrusion in the blow molding process makes this possible without slowing production. Topfeelpack applies this molding process to extend shelf life while keeping packaging lightweight.
Grades Ensuring Surface Finish and UV Protection
Looks sell. Protection seals the deal.
A strong blow molding process also focuses on finish quality:
- High surface gloss for shelf appeal
- Improved smoothness for label adhesion
- Enhanced UV stability for outdoor storage
- Proven weatherability in changing climates
- Long-term color retention
Additives matter:
- Carefully selected pigments
- Functional UV absorbers
When the molding process is dialed in, surface defects drop and clarity improves. That’s how the blow molding process turns simple resin into skincare packaging that feels high-end yet stays practical.
High Scrap Rates? Calibrate Machine Settings
Scrap piling up in the blow molding process can feel like money leaking out of the plant. Flash, thin walls, warped bottles—it adds up fast. The good news? Most issues trace back to machine settings, not the mold design itself. Dialing in the plastic blow molding process with tighter control keeps material flow steady and quality on point.
Cycle Time Adjustment to Reduce Flash
In the blow molding process, unstable cycle time often triggers excess flash and rising scrap. Fine-tuning timing improves material flow and boosts scrap reduction without slowing output.
- Evaluate current timing
- Check actual vs. set cooling time
- Measure mold open/close delay
- Track parison drop consistency
- Adjust cooling phase
- Short cooling → soft edges → flash
- Long cooling → wasted capacity
- Balanced cooling stabilizes the molding process
- Confirm results on the floor
- Inspect trim weight
- Compare scrap ratio before/after
- Monitor overall process optimization metrics
Small tweaks here often clean up the entire blow mold operation.
Pressure and Temperature Fine-Tuning
Stable melt temperature, accurate mold temperature, and controlled blowing pressure keep parison control predictable. When these process parameters drift, wall thickness shifts and strength drops.
- Keep melt temperature aligned with resin material properties.
- Match blowing pressure to container geometry.
- Cross-check mold surface heat weekly.
According to Plastics Industry Association reporting in 2025:
“Tighter thermal and pressure control remains the fastest path to reducing molding scrap and improving wall consistency across high-volume packaging lines.”
That applies directly to any blow molding process running HDPE or PET.
Mold Maintenance for Consistent Wall Thickness Uniformity
Strong part quality in the blow molding process depends on disciplined mold maintenance.
- Cleaning routine
- Remove resin buildup
- Inspect venting channels
- Confirm surface polish condition
- Dimensional checks
- Verify cavity alignment
- Measure core wear
- Protect dimensional stability
- Repair planning
- Schedule minor mold repair early
- Replace worn inserts
- Record trends to protect process consistency
When tooling stays sharp, wall thickness uniformity follows. Scrap drops. The plastic molding process runs smoother. And production teams breathe a little easier.
FAQs
How does the blow molding process support high-volume Cosmetic Packaging?
High-volume beauty lines demand speed without chaos. The blow molding process meets that pressure through:
- Extrusion Blow Molding and Accumulator Head Blow Molding for large batches of bottles and containers.
- Optimized cycle time and automation to raise production capacity.
- Smart tooling design to switch between shampoos, lotions, and foundations with minimal downtime.
Quality stays steady because teams monitor:
- Wall thickness uniformity
- Dimensional accuracy
- Visual inspection during every shift
The result—stable output, fewer rejects, confident delivery dates.
Why choose Injection Blow Molding for premium jars and containers?
When a Cream Jar must feel flawless in hand,Injection Blow Molding becomes the quiet hero.
It offers:
- Precise dimensional accuracy for tight-fitting closures
- Refined surface finish suited to high-end serums
- Reliable leak testing performance
Compared with standard extrusion methods, this process delivers smoother neck finishes and consistent wall control—essential for luxury cosmetic packaging where even small defects stand out under retail lighting.
Which materials and processes improve clarity and protection for Skincare Bottles?
Transparent serum bottles are not just pretty; they signal purity.
A smart pairing looks like this:
| Process | Key Benefit | Ideal For |
|---|---|---|
| Stretch Blow Molding | Enhanced clarity & impact strength | PET bottles for serums |
| Co-extrusion Blow Molding | Strong barrier properties | Conditioners, lotions |
| Extrusion Blow Molding | Chemical resistance | Shampoo containers |
Add UV protection grades for light-sensitive formulas, and the packaging guards both performance and shelf appeal.
How can mold maintenance and sustainability reduce scrap rates?
Scrap often hides in worn tooling and unstable settings. Regular mold maintenance protects:
- Wall thickness uniformity
- Material purity
- Leak testing consistency
At the same time, sustainable choices reshape production habits:
- Recycled content and post-consumer resin (PCR)
- Bio-based polymers
- Lightweighting for better recyclability
When equipment is cared for and materials are selected with intention, bottles and jars leave the line cleaner, stronger, and ready for responsible markets.
